Detailed introduction

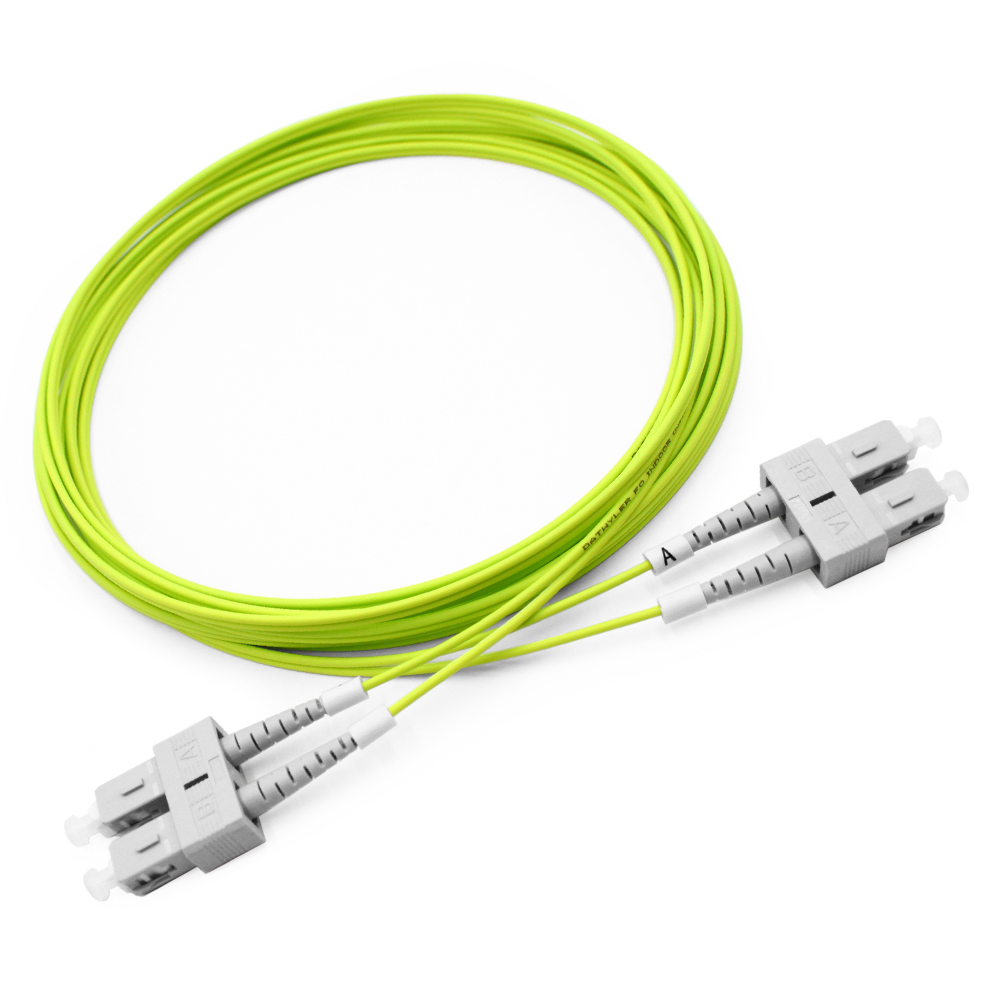

Optical fiber jumper according to the different transmission media can be divided into common silicon fiber single-mode, multi-mode jumper, and other such as plastic optical fiber jumper as the transmission medium; According to the connection head structure form can be divided into: FC jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 jumper, D4 jumper and so on various forms. Common optical fiber jumpers can also be classified into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, and SC-ST.

Single-mode Fiber: Generally, the Fiber jumper is in yellow, and the connector and protective sleeve are in blue. Longer transmission distance.

Multi-mode Fiber: Generally, the Fiber jumper is in orange, and some are in gray. The connector and protective case are in beige or black. The transmission distance is short

The characteristics of

1. Low insertion loss

2. Good repeatability

3. Large return loss

4. Good interplugging performance

5. Good temperature stability

6. Strong tensile performance

application

Optical fiber jumper products are widely used in: communication room, optical fiber to the home, local area network, optical fiber sensor, optical fiber communication system, optical fiber connection transmission equipment, national defense readiness, etc. Suitable for cable television network, telecommunication network, computer optical fiber network and optical testing equipment. Subdivided down mainly used in several aspects.

1. Optical fiber communication system

2. Optical fiber access network

3. Optical fiber data transmission

4. Optical fiber CATV

5. Local Area Network (LAN)

6. Test equipment

7. Optical fiber sensor
